CB200

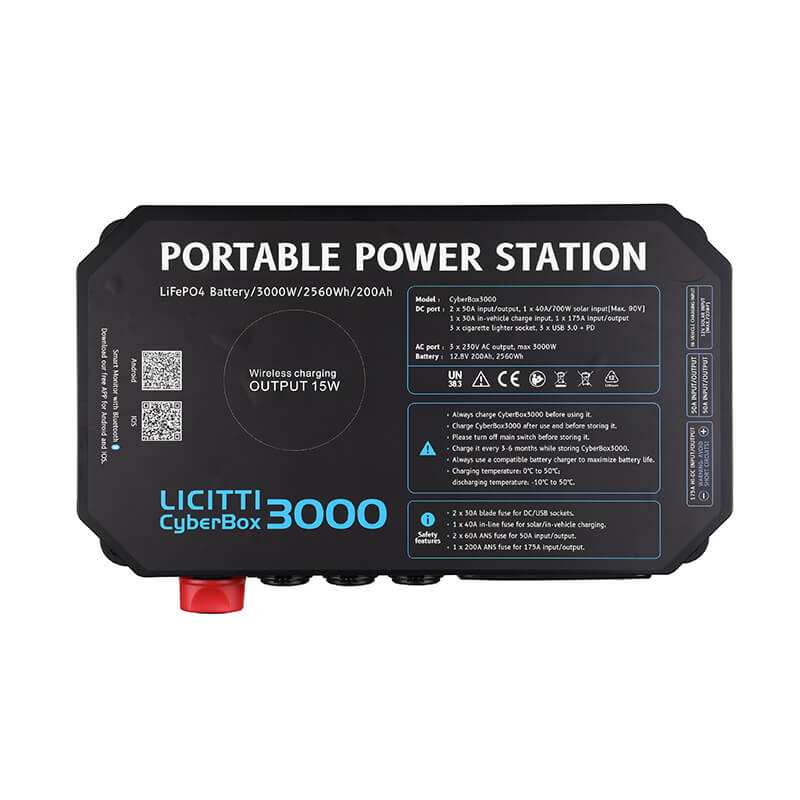

CYBERBOX 3000 is a new generation portable power station, which integrates with 30A DC-DC charger & 40A MPPT solar controller, 3000W pure sine wave inverter. A variety of DC outlets on CYBERBOX 3000, like 50A Anderson ports, 175A Anderson port, 12V cig socket, USB & PD.
With capacity expandability, it can easily expand its capacity via 175A Anderson port.
3000W pure sine inverter runs most of household appliances effortlessly.
High strength metal case with easy hold-down system for vehicle.
Smart battery monitor with Bluetooth APP to monitor charigng and discharging information easily.
- Heavy Duty Housing
- Multi-function Display
- Versatile outlets
- Robust & Rellable Power
- LiFePO4 & BMS, Safety Top Priority
- Ultra-fast Charging
CB200 Description
PORTABLE & COMPACT LICITTI CYBERBOX 3000PORTABLE POWER STATION
HIGH STRENGTH STAINLESS CASE WITH EASY HOLD-DOWN SYSTEM FOR VEHICLE.
ALL IN ONE DUAL BATTERY SYSTEM, 30A DC-DC CHARGER & 40A MPPT SOLAR CONTROLLER BUILT-IN.
LIFEPO4 BATTERY, LIFE CYCLE 6000+ TO 80%D.O.D.
WITH CAPACITY EXPANDABILITY.
300A TWIST LOCK MAIN SWITCH.
CUSTOMIZED VARIOUS DC OUTLETS.
3000W230V/AC(2000W110V/AC) PURE SINE WAVE INVERTER, SURGE 6000W/4000W.

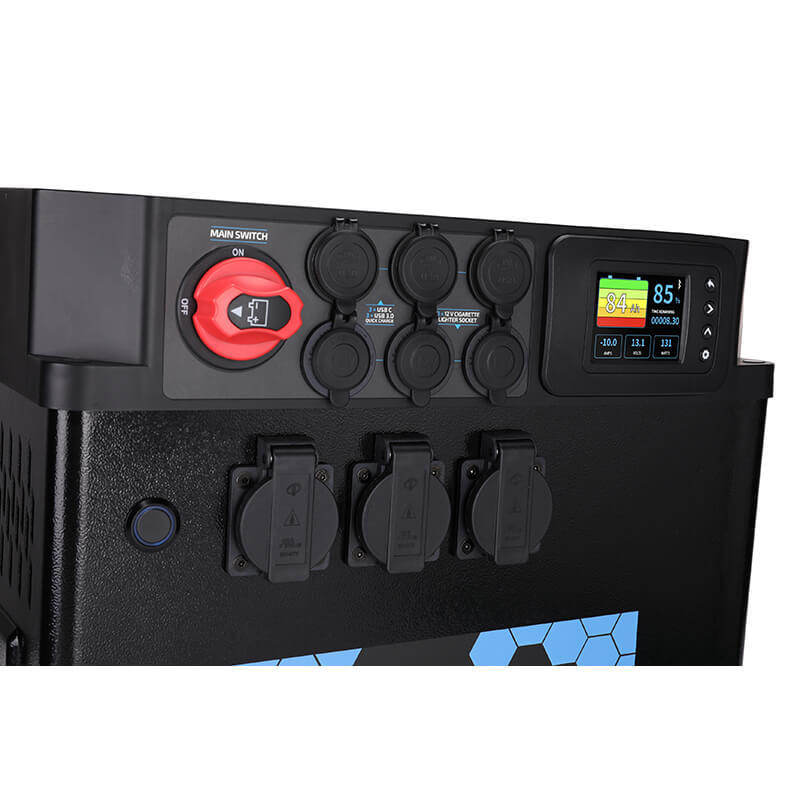

DC & AC SOCKET OUTLETS
- 1 x TOP LID WIRELESS CHARGE 15W
- 2 x 12V CIG SOCKET TO POWER LIGHT, DC FRIDGE ETC(MAX 120W,15A)
- 2 x USB3.0+PD DC PORTS (18W MAX)
- 1 x ENGAL SOCKET.1X ENGLE SOCKET
- 3 x AC SOCKET WITH COOLING VENTS.110VAC 60HZ/ 230V 50HZ.MAX POWER≤3000W
AC SWITCH – TURN ON, GREEN LIGHT IS ON, ACTIVATE THE INVERTER WITH 1 BEEP ALERT. DC SWITCH – ALL 12V SOCKETS & ANDERSON PLUGS ARE CONTROLLED BY MAIN SWITCH.

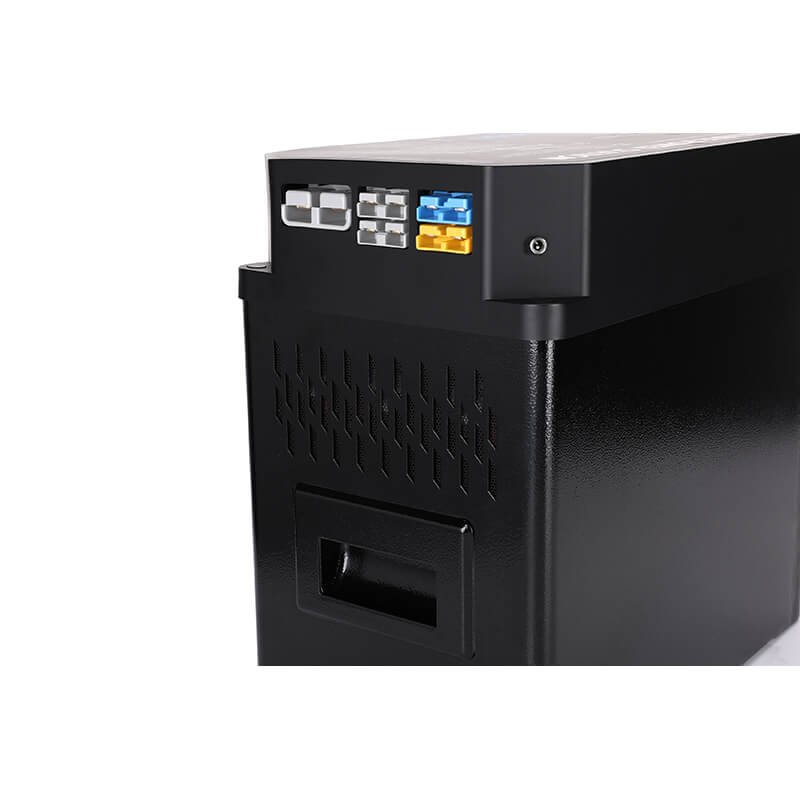

HIGH POWER ANDERSON CONNECTORS
1 x 175A PORT CAN BE USED FOR CAPACITY EXPANDABILITY.
2 x 50A ANDERSON CONNECTORS ARE INPUT AND OUTPUT OUTLETS(MAX 600W ).
1 x 50A YELLOW ANDERSON CONNECTOR WITH 40A MPPT CONTROLLER BUILT-IN FOR SOLARINPUT (MAX 600W 9OV).
SECURED & ASSURED:
LIFEPO4 BATTERY WITH 250A (BATTERY MANAGEMENT SYSTEM(BMS)BUILT-IN.
MULTI-SAFETY PROTECTIONS: SHORT-CIRCUIT PROTECTION, OVER-CURRENT PROTECTION, OVER-VOLTAGE PROTECTION, LOW-VOLTAGE PROTECTION, OVER-LOAD PROTECTION, OVER-TEMPERATURE.
PROTECTIONCOMPLIES STANDARDS-APPROVED BY MSDS, CE, UN38.3, EMC.
ENVIRONMENTAL FRIENDLY, GREEN POWER SUPPLY.
PRODUCT SPECIFICATIONS
| Model No. | CB200 |
| Battery Specification | Battery Specification |
| Battery Type | LiFePO4(Lithium iron phosphate) |
| Battery Voltage | 12.8V |
| Capacity | 200Ah |
| Battery Lifespan | 6000+ Life cycles |
| BMS Capability | 250A |
| Output Specification | Output Specification |
| AC Rate Power / Surge Power(max) | 3000W / 6000W |
| AC Continuous Output Voltage | 100-120V / 220-240V |
| AC Rated Frequency | 50Hz / 60Hz |
| AC Outlet | 3 x AC Outlet (max 3000W) |
| DC Outlet | 3 x 12V 10A socket |
| 3 x USB3.0 + PD | |
| 2 x 12V 50A input/output | |
| 1 x 12V 175A outlet | |
| Input Specification | Input Specification |
| AC Charger | Input: 100-120V / 220-240V AC, 50/60Hz, 10A |
| Output: 14.6V 40A | |
| DC-DC Charge | ALT input: 10-36VDC |
| Output: 14.6V 30A | |
| MPPT solar Charge | Solar input: max 90V |
| Output: 14.6V 40A | |
| EN60335, EN60335, EN55014, EN61000 | |
| Operating Environment | Relative Humidity: 10%-90% |
| Operating Temperature: -10℃ to 50℃ Discharge, 0℃ to 50℃ Charge | |
| Dimension | L420*265*350mm |
| Net Weight | 34.00KG |
