LI-BM600
For different types of batteries, different voltages, new and old batteries, in order to better and easier to understand the use of the battery state and remaining capacity information, we developed these advanced battery monitors. Combined with complex software algorithms, we collect and calculate the voltage and current of a battery and display it with simple numbers and icons. Compared with other similar products on the market, LI-BM500 has the following advantages: Easy to program.
Clear display interface and operation interface, combined with four physical buttons, easily set capacity, maximum voltage, minimum voltage, capacity alert to meet different needs.
Meanwhile, download the Android or IOS APP to do fast and easy settings.
Easy to install.
Clear installed diagram, clear at a glance. The installation card with the monitor makes the installation hole position simple and clear.
Wireless, smart and simple.
With the Bluetooth connection, to monitor the battery information on Android or IOS APP.
LI-BM600 smart battery monitor is designed for different kinds of batteries, to measure and monitor battery capacity, voltage, current and working time remaining. Touch LCD screen combined with shunt is much easier to set up and use. Multiple parameters can be set to fully meet diverse usage needs. Android and IOS APP make it more convenient to know battery information.
LI-BM600 Description
-
Suitableany battery type and size
Suitable for various batteries, battery banks and power systems, facilitating better understanding of battery usage and enhancing user experience.
-
Monitor battery status
Easy to know battery capacity, capacity percentage, voltage, current, power and time remaining.
-
Easy toinstall
Clear installed diagram, easy to mount. The mounting indicator card makes the installation simple and clear.
-
Easy to program

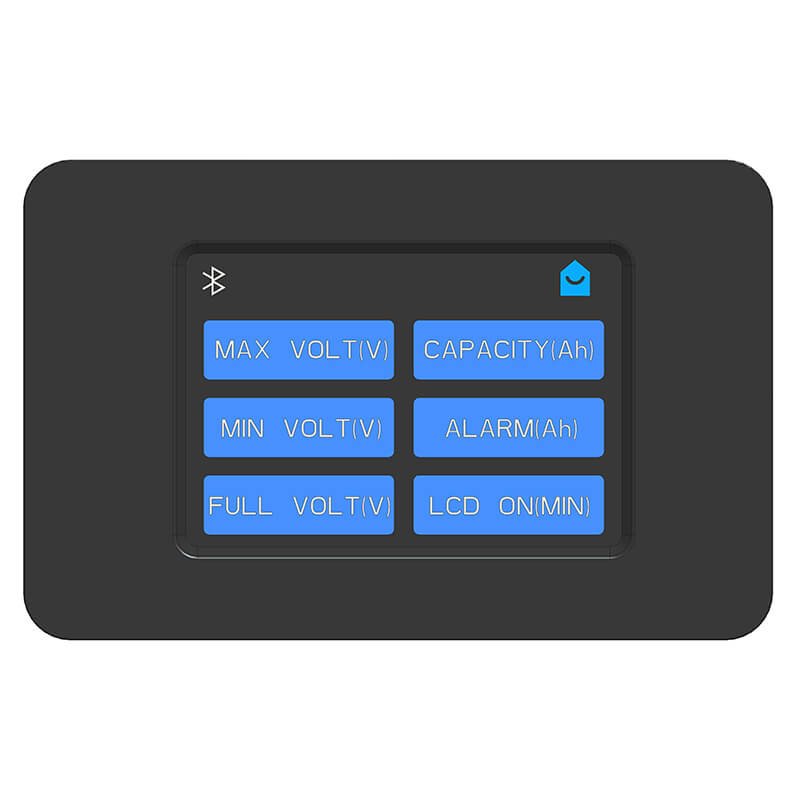

Tap color LCD touch screen to set capacity, maximum voltage, minimum voltage, low capacity alarm, full charge calibration and LCD bright time, to meet different needs.
-
Wireless, smart and simple
With Bluetooth connection, to monitor and set battery information via Android APP or IOS APP.
-
High applicability
Wide voltage range: 10V – 120V; wide capacity range: 10 – 1000Ah; 500Amps quick connect shunt with PCB, detecting high current charging and discharging.
PRODUCT SPECIFICATIONS
| Model | LI-BM600 |
| Supply voltage range | 10 – 120 VDC |
| Battery capacity range | 10 – 1000.0 Ah |
| Max measured current | 500 A |
| Current consumption | ≤ 0.15 A |
| Voltage accuracy | ±1 % |
| Current accuracy | ±1 % |
| Capacity accuracy | ±1 % |
| Temperature range | -20°C – +50°C |
| Communication | Bluetooth, RS485 |
| Weight (LCD screen) | 125*80*35 mm |
| Dimension (LCD screen) | 120g |
| Protection class | IP20 |
| Standards | EN 62368-1:2014+A11:2017 |
| EN 50663:2017 | |
| ETSI EN 301 489-1 V2.2.3(2019-11) | |
| ETSI EN 301 489-17 V3.2.4(2020-09) | |
| ETST EN 300 328 V2.2.2(2019-07) | |
| FCC Part15.247 | |
| ANSI C63.10:2013 |
